CKS-840
(15nm, 20nm, 25nm, 28nm)
- Fully controlled closing action with speed adjustment for the ranges 116º to 20º to 0º (either direction)
- Hold open at 90º
- Non-hold open (optional)
- Terms & Condition Apply.
- Please contact us for more information
(6)03-6274 6599 - CKS-840 Floor Hinge Testing report
- CKS-840 Floor Hinge Warranty Letter
Description
| Spring strength | 1 | 2 | 3 | 4 |
| Closing force approx (Nm.) | 15 | 20 | 25 | 28 |
| Standard and door width | 800 | 1000 | 1200 | 1300 |
| Closing speed variable by value adjustment | √ | √ | √ | √ |
| Door weights up to (kg) | 75 | 100 | 115 | 130 |
| Hold-open point (90°) or non-hold open |
√ O |
√ √ |
√ √ |
√ O |
| Weight approx (kg) | 6.0 | 6.0 | 6.0 | 6.0 |
| dimensions (mm) Length Width Height |
320 130 42 |
320 130 42 |
320 130 42 |
320 130 42 |
√ Yes
O Option
Adjustment in cement case: Length x 10mm, horizontal x 5mm, height x 15mm

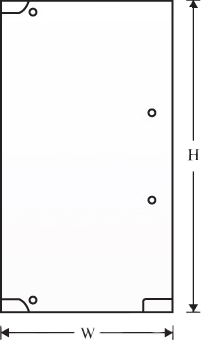

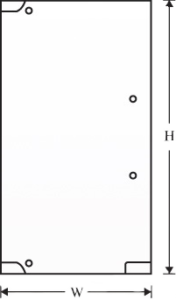

Maximum Frameless Glass Door Dimension For CKS Floor HInge (CKS-840)
[one_half]| Spring Strength | 15Nm | 20Nm | 25Nm | 28Nm |
| Max door width (W) mm | 800 | 1000 | 1200 | 1300 |
| Max door weight (KG) | 75 | 100 | 115 | 130 |
*Remark:
Please consult product manufacturer for maximum height (H) of frameless glass door
[/one_half][one_half_last]
*Above mentioned reference are to be a general design guide only. Individual project requirements will dictate final glass specification and thickness as per different standard requirement.
